63 31 Interior Lighting
>>
63 31 085 Removing and installing/replacing trunk compartment light (trunk lid)
>>
Removing trunk compartment light on trunk lid
Removing trunk compartment light on trunk lid

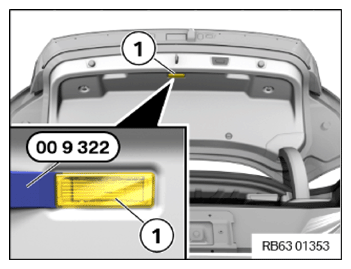

Unclip luggage compartment lamp on the trunk lid (1) with the special tool
0 490 539 (00 9 322).
Courtesy of BMW OF NORTH AMERICA, INC.
Unlock plug connection (1) and disconnect.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
