Removing the rolling module
WARNING:
Pyrotechnic components
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Electrostatic discharge .
Damage to or destruction of electrical components .
Electrostatic discharge .
Damage to or destruction of electrical components .
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
Preliminary work
- Refer to REMOVING THE LEFT AND RIGHT A-PILLAR TRIM PANEL .
- Refer to PARTIALLY REMOVING BOTH TOPPING B-PILLAR TRIM PANELS .
- Refer to REMOVING BOTH BACKREST SIDE SECTIONS .
- Refer to REMOVING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
- Refer to REMOVING RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
- Refer to REMOVING THE HANDS-FREE MICROPHONE LEFT AND RIGHT .
- Refer to REMOVING BOTH SUN VISORS AND COUNTER SUPPORTS .
- Refer to REMOVING THE FRONT LEFT AND RIGHT VANITY MIRROR LIGHTS .
- Refer to REMOVING THE ROOF FUNCTION CENTER (FZD) .
- Refer to REMOVING THE REAR LEFT AND RIGHT HANDLE .
- Refer to REMOVING INTERIOR ROOF LIGHT .
- Refer to LOWERING THE HEADLINING (WITH PANORAMA GLASS ROOF) .
- Refer to PARTIALLY RELEASING THE HEAD AIRBAG .

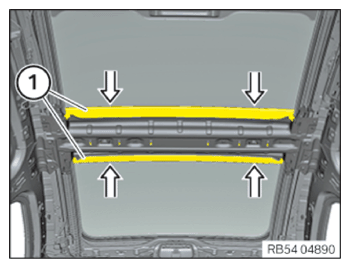

- Completely open the roller sunblind (1) manually on the drives in the direction of the arrow, until a slight resistance is felt.
- Loosen screws (1).
- Loosen screws (2).
- Loosen screws (1).NOTE: Perform the steps on the right and left side.
- Loosen screws (1).

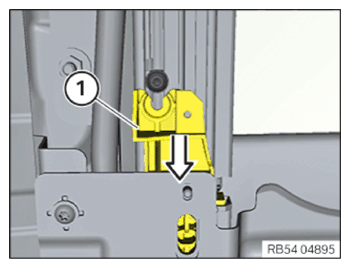

- Shift guide (1) in the direction of the arrow.

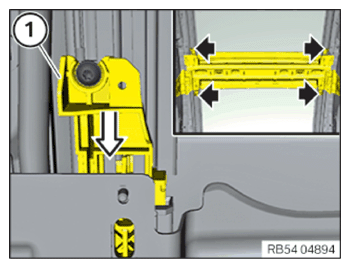

- Shift guide (1) so far in the direction of the arrow until the guide (1) engages as shown.NOTE: RISK OF DAMAGE
Heavy component .
Heavy components can lead to injury or damage .- Remove and install heavy components with the aid of another person/other persons.

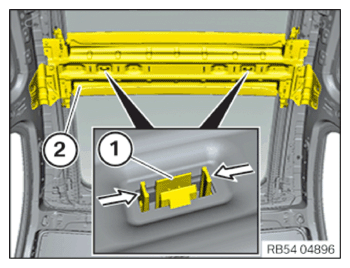

- Unlock the retaining clips (1) in the direction of the arrow.
- Remove the rolling module (2) from vehicle with a support person.
