Remove both sun visors and counter supports
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the sun visor and the counter support

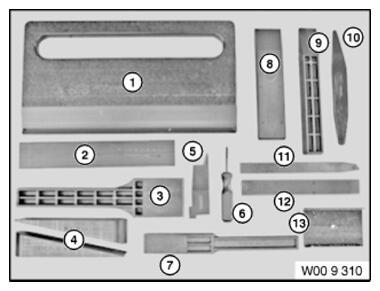

- Get the set of special tools 0 493 752 (00 9 329)
ready.

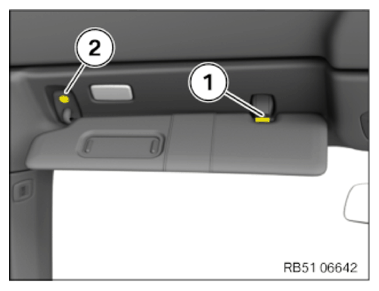

- Detach the sun visor from counter support (1).
- Unclip the cover (2) with suitable tools.

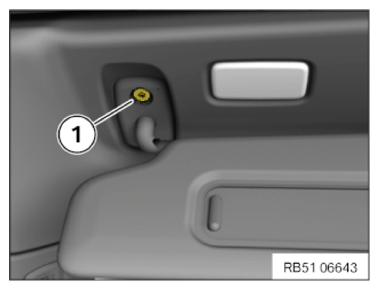

- Loosen screw (1).
- Remove the sun visor and unlock and disconnect the associated plug connection.

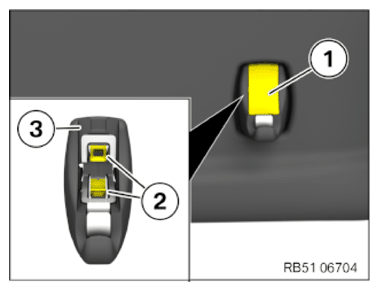

- Unclip the cover (1) with suitable tools.
- Push the clamps (2) together and pull the counter support (3) out of the headlining.
