Removing the glass roof
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
Careless handling of tools and sharp-edged components .
Scratches, surface damage .
- Protect working area.
- Handle tools and components carefully.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to 3. REMOVING THE BRAKE LIGHT .
- Refer to REMOVING BOTH BACKREST SIDE SECTIONS .
- Refer to REMOVING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
- Refer to REMOVING RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
- Refer to REMOVING THE TRIM PANEL FOR THE STORAGE SHELF .
- Refer to REMOVING REAR WINDOW .
- Refer to REMOVING BOTH THE ROOF TRIM STRIPS .

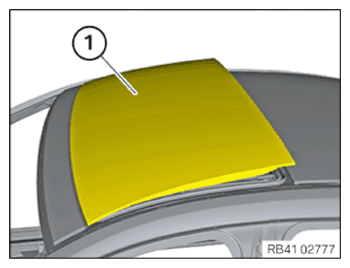

- Run up the panorama roof cover (1)
to maximum without the panorama roof cover (1)
running back.

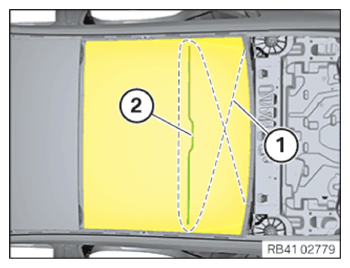

- Measure and note the height in all 4 corners between the glass sunroof (1)
and roof frames (2)
.NOTE: TECHNICAL INFORMATION

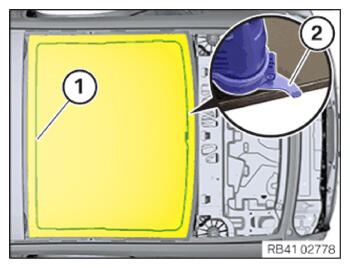

Wear safety goggles. - Disconnect adhesive bead (1)
around with oscillating knife (2)
.
Use special tool 5 A0B 3B6 .
NOTE: TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: 51 31... Window glass removal using "spider" - Lay separating cord (1)
around adhesive bead (2)
.
Use special tool 5 A08 569 .
- Disconnect grounding cable (2) .
- Remove the glass sunroof.
