Installing the seat cover for the front seat

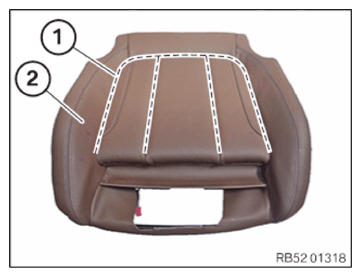

• Place the seat cover (2) on the cushion.
• Secure all trim wires (1) with the clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace clamps (2).

  Parts:  Clamps

• Insert clamps (2) using special tool  0 492 668 (52 0 050)
• Clasp the trim wire (3) of the cushion (1) and the trim wire (4) of the upholstery material with clamps (2).
• Carefully bend the clamp (2) shut.

  Courtesy of BMW OF NORTH AMERICA, INC.

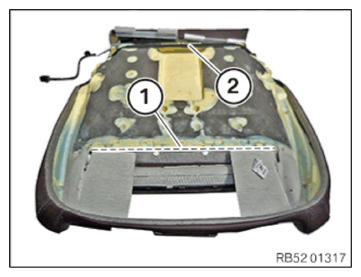

• Position the trim wire in the tacking channel (1).
• Position the rubber band (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

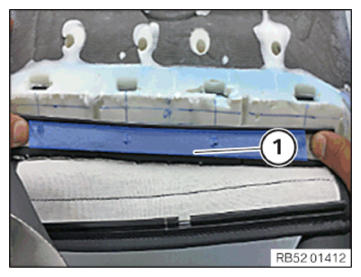

• Correctly position the tacking channel.

  Courtesy of BMW OF NORTH AMERICA, INC.

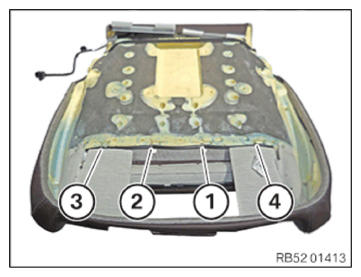

• The clamps are to be placed in the order (1) to (4) as described in the following step.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  During the installation of the insert duct, the wires of the seat heating and supply line must not be damaged by the clamps.
• Replace clamps (2).

  Parts:  Clamps

• Insert clamps (2) using special tool  0 492 668 (52 0 050)
• Clasp the trim wire (3) of the cushion (1) and the trim wire (4) of the upholstery material with clamps (2).

  Carefully  bend the clamp (2) shut.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SEAT COVER WITH CUSHION FOR THE DRIVER'S SEAT .
• Refer to INSTALLING THIGH SUPPORT .
• Refer to INSTALLING THE INNER COVER ON THE FRONT SEAT .
• Refer to INSTALLING OUTER COVER ON FRONT SEAT .
• Refer to AFTER CONTINUING WORK ON THE FRONT SEAT: DISCONNECTING THE FRONT SEAT FROM THE WIRING HARNESS OF THE VEHICLE AND REMOVING IT FROM THE UNIVERSAL SEAT MOUNT .
• Refer to INSTALLING DRIVER'S SEAT .
