Seats -- Repair (G14, G15, & G16)
>>
52 17 Front Seats, Seat Covers, Upholstery
>>
52 17 048 Dismantling and mounting thigh support to front seat, left or right
>>
Install thigh support
Install thigh support

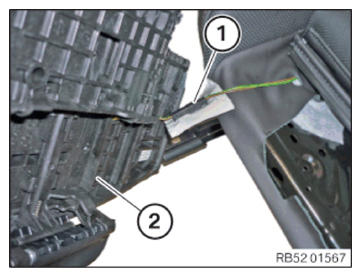

Position the thigh support (2).
Connect connectors (1) and lock.
Courtesy of BMW OF NORTH AMERICA, INC.

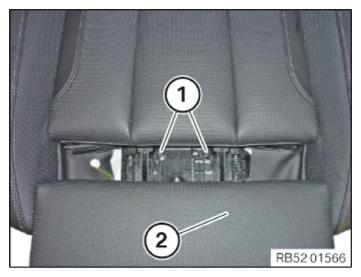

Guide the thigh support (2) in and position correctly.
Tighten down screws (1).
Courtesy of BMW OF NORTH AMERICA, INC.

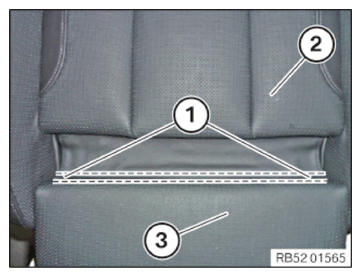

Mount the edge stripping (1) of the seat cover (2) on the thigh support (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
