Installing the seat cover with cushion for the driver's seat

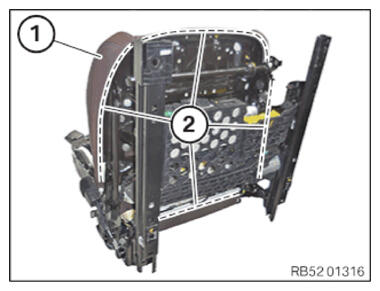

• Insert seat cover (1) with the cushion and position.
• Attach seat cover (1) in the areas (2).
• If necessary, connect existing plug connections and clip in cable clips.

  Courtesy of BMW OF NORTH AMERICA, INC.

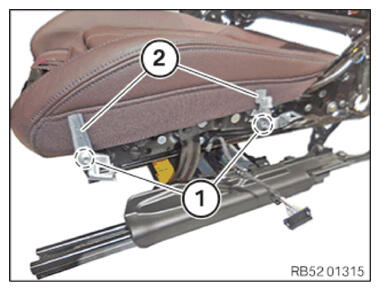

• Position holder (2) and tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Seat trim to seat frame
Sheet metal screw	tightening torque	2.5 Nm
