Installing the front carpet

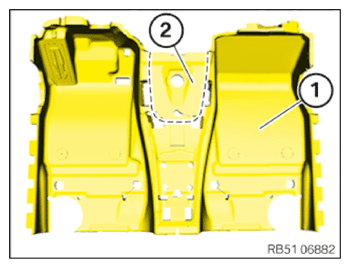

• Lay removed carpet on the new carpet (1)  and transfer cuts to new carpet (1)  .
• Cut off the highlighted area (2)  on the new carpet (1)  .
• Make sure the carpet (1)  is positioned correctly at all adjacent parts and in area of heating and air-conditioning unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

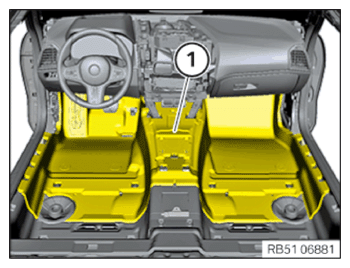

• Install the carpet (1)  in the car.

  Courtesy of BMW OF NORTH AMERICA, INC.

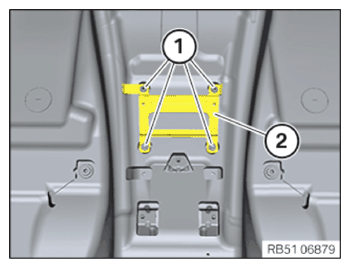

• Install the holder (2)  and tighten the nuts (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Bracket of center console, center
  Nut M6	tightening torque	4.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

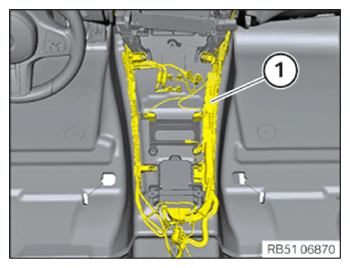

• Clip in the wiring harness (1)  on to the brackets and connect and lock the connectors.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING ACCELERATOR PEDAL MODULE .
• Refer to INSTALLING THE AIRBAG CONTROL UNIT .
• Refer to INSTALLING THE SPEAKER TRIM ON THE LEFT AND RIGHT CENTER BASS .
• Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
• Refer to INSTALLING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE LEFT A-PILLAR .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE CENTER CONSOLE .
• Refer to INSTALLING THE FOOTWELL TRIM PANEL ON THE RIGHT .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to INSTALLING THE CENTER STACK MODULE .
• Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
• Refer to INSTALLING THE CUP HOLDER .
• Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
• Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
• Refer to INSTALLING CENTER ARMREST .
• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to INSTALLING BOTH FRONT SEATS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
