Installing the speaker trim on the left and right center bass
NOTE:
Description is for left component only. Procedure on the right side is identical.

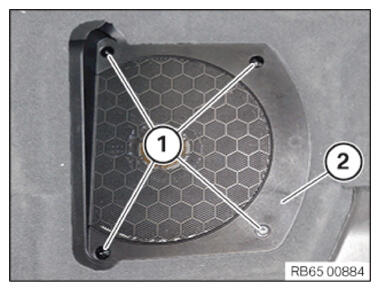

Install the speaker trim for the central bass
- Position the speaker trim for the central bass (2).
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Central bass speaker trim |
| screw |
Tightening torque |
2 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
