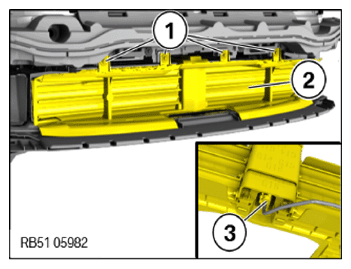

Installing the bottom automatic air flap control
- Connect connectors (3) and lock.
- Feed in lower air flap control (2) from the front and position.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Lower air flap control on cross member cover | ||
|---|---|---|
| Hexagon screw for thermoplastic | Tightening torque | 3 Nm |
Follow-up work
- Refer to IF INSTALLED: INSTALLING FRONT RADAR SENSOR (FRS) WITH BRACKET .
- Refer to INSTALLING FRONT BUMPER COVER .
- Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
- Refer to PARTIALLY INSTALLING BOTH FRONT WHEEL ARCH COVERS .
- Refer to INSTALLING CENTER RADIATOR GRILLE .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to ADJUSTING THE FRONT RADAR SENSOR (FRS) .
