If installed: Installing front radar sensor (FRS) with bracket

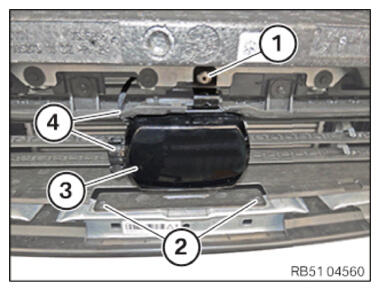

Installing FRSF with holder
- Connect connectors (4) and lock.
- Position FRSF (3) with holder.
- Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONS
| Front radar sensor (FRS) holder/(FRSF) to support |
| Combination oval-head machine screw |
tightening torque |
8 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
