Install reinforcement strut

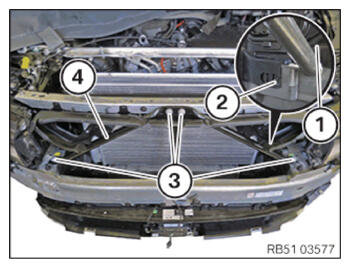

• Feed in reinforcement strut (4).
• Tighten down screws (3).
  TIGHTENING TORQUES SPECIFICATION



  Reinforcement strut on cross connection and bumper bracket
  Oval-head screw M8	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Detach the air duct (1) at the lever (2) rearwards and fold upwards.

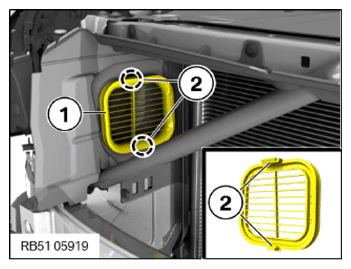

• Clip in the unfiltered-air grille (1) with the detents (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE PEDESTRIAN PROTECTION SENSOR .
• Refer to INSERTING TOP AUTOMATIC AIR FLAP CONTROL .
• Refer to INSTALLING FRONT BUMPER COVER .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING BOTH FRONT WHEEL ARCH COVERS .
• Refer to INSTALLING CENTER RADIATOR GRILLE .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
