Installing the pedestrian protection sensor

• Check the impact absorber (2) for damage and replace if necessary.
• Carefully insert the active pedestrian protection (1) into the impact absorber (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

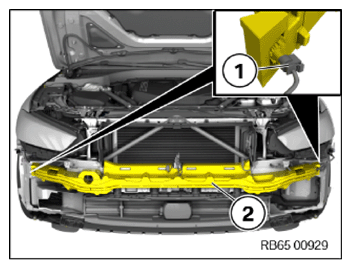

• Connect connectors (1) and lock.
• Hook the impact absorber (2) into place below and press upwards.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSERTING TOP AUTOMATIC AIR FLAP CONTROL .
• Refer to INSTALLING FRONT BUMPER COVER .
• Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
• Refer to PARTIALLY INSTALLING BOTH FRONT WHEEL ARCH COVERS .
• Refer to INSTALLING CENTER RADIATOR GRILLE .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
