Securing the rubber frame of the windshield
-

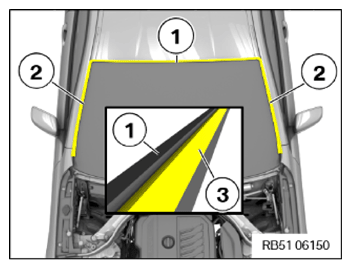

NOTE: The windshield rubber frame (1) is taped to both A-pillars (2) .
- Fasten double-sided adhesive tape (3) on windshield rubber frame (1) on both A-pillars (2) .
Follow-up work
- Refer to INSTALLING THE RAIN-LIGHT-SOLAR-CONDENSATION SENSOR (PARTIALLY REMOVED) .
- Refer to INSTALLING THE KAFAS CAMERA .
- Refer to INSTALLING INTERIOR REARVIEW MIRROR .
- Refer to INSTALLING THE TRIM ON THE UPPER WINDSHIELD PANEL .
- Refer to INSTALLING FRONT VANITY MIRROR LIGHT .
- Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
- Refer to INSTALLING BOTH SUN VISORS AND COUNTER SUPPORTS .
- Refer to INSTALLING THE LEFT AND RIGHT A-PILLAR TRIM PANEL .
- Refer to ATTACHING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to CALIBRATE KAFAS CAMERA .
