Installing Roof function center (FZD)

Check:

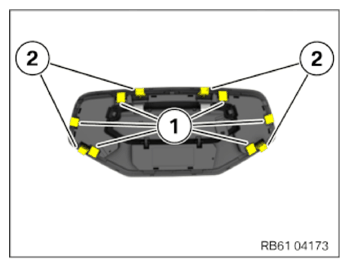

• Check the clamps (1) and the safety catch (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result:

» The clamp or safety catch is damaged.

Measure:

• Replace the roof function center (FZD).

• Connect corresponding connectors and lock.

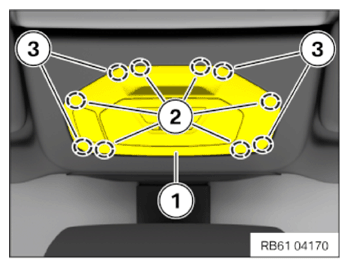

• Install the roof function center (FZD) (1) and engage with the clamps (2) and the safety catch (3).

Courtesy of BMW OF NORTH AMERICA, INC.
