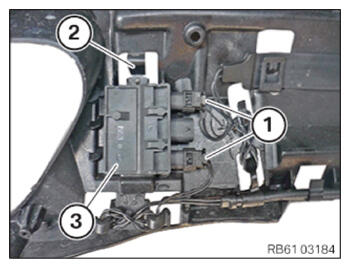

Install the control unit for the contactless trunk opening
- Connect all connectors (1).
The connectors must engage audibly.
- Clip in and install the control unit (3) from the top.
- Check that the detent (2) is fitted correctly.
Follow-up work
- Refer to INSTALLING THE BRACE FOR THE REAR BUMPER .
- Refer to INSTALLING REAR BUMPER PANEL .
- Refer to INSTALLING BOTH EXHAUST COVERS .
- Refer to INSTALLING THE REAR BUMPER TRIM .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
- Refer to INSTALLING COVER FOR WATER CHANNEL ON LEFT AND RIGHT .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT (PARTIALLY REMOVED) .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
