Install the brace for the rear bumper

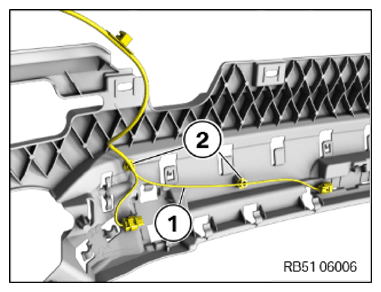

• Position brace for the rear bumper.
• Clip in vehicle wiring harness (1) with the holders (2).
• Depending on equipment, connect and lock all connectors.

  Courtesy of BMW OF NORTH AMERICA, INC.

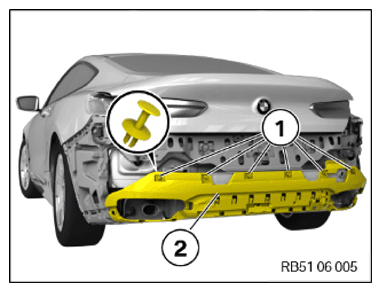

• Position brace for the rear bumper (2).
• Secure expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.
