Installing the luggage compartment wheel arch trim panel on the left and right (partially removed)
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing luggage compartment wheel arch trim panel (partially removed)

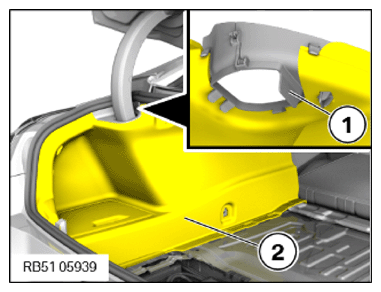

- Feed the left luggage compartment wheel arch trim panel (2) in the rear area under the sealing lip of the tailgate seal.
- Install hinge cover (1).

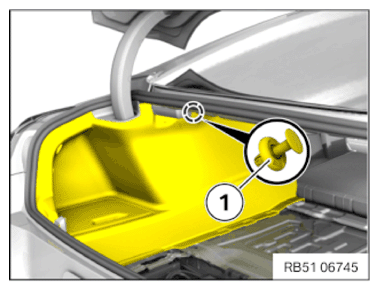

- Fasten expanding rivet (1).
Installing the emergency release handle for the tailgate (additional work for US version)
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

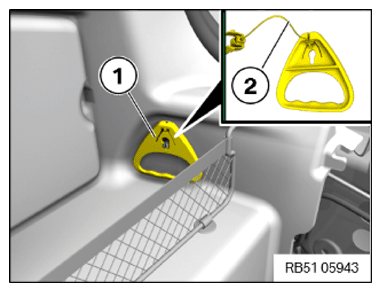

- Attach the Bowden cable (2).
- Fasten the emergency release handle (1) for the tailgate to the holder.
