Installing guides for the rear head restraint
NOTE:
Perform the steps on the right and left side.

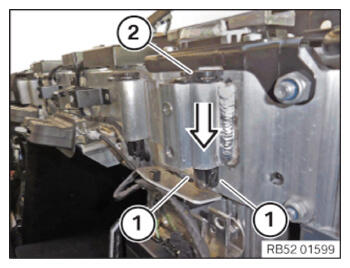

- Correctly position the head restraint guide (2) and install in direction of arrow.
- Ensure that the snap-in lugs (1)
of the head restraint guide (2)
engage audibly.
Follow-up work
- Refer to INSTALLING THE PANEL OF THE LUGGAGE COMPARTMENT PARTITION WALL .
- Refer to INSTALLING THE TOP PARTITION WALL TRIM PANEL .
- Refer to INSTALLING REAR HEAD RESTRAINT .
- Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
- Refer to INSTALLING THE LEFT AND RIGHT SEATBELT FINISHER STRIP .
- Refer to INSTALLING THE REAR SEAT .
- Refer to INSTALLING THE WINDOW CHANNEL STRIP AT REAR OUTER LEFT AND RIGHT .
- Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
