Install backrest frame

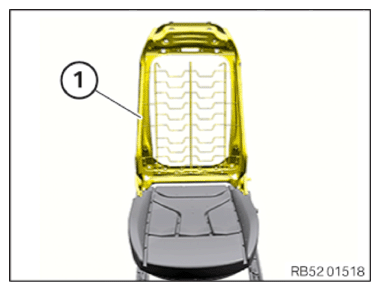

• Position and fasten all mounted parts on the backrest frame (1).
• Correctly position the backrest frame (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The operations shown only for one side must be carried out on both sides.

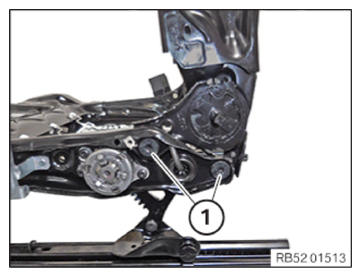

• Replace screws (1).

  Parts:  Screws

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Seat frame on backrest frame
  Screw Replace screw.	tightening torque	44 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DRIVE FOR HEAD RESTRAINT HEIGHT ADJUSTMENT .
• Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION FOR THE FRONT SEAT .
• Refer to INSTALLING THE HEAD RESTRAINT .
• Refer to INSTALLING THE REAR PANEL ON THE FRONT SEAT BACKREST .
• Refer to AFTER CONTINUING WORK ON THE FRONT SEAT: DISCONNECTING THE FRONT SEAT FROM THE WIRING HARNESS OF THE VEHICLE AND REMOVING IT FROM THE UNIVERSAL SEAT MOUNT .
• Refer to INSTALLING DRIVER'S SEAT .
