Installing the drive for head restraint height adjustment

NOTE: TECHNICAL INFORMATION
The drivetrain for the headrest height adjustment must be replaced as soon as the head restraint is removed.

Replace the drive for the head restraint height adjustment (1).
Parts: Drive for headrest height adjustment

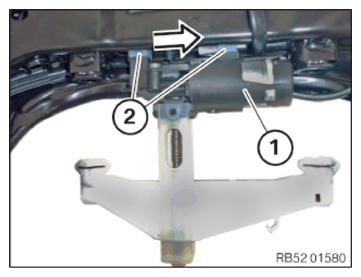

Install the drive for head restraint height adjustment (1) at the attachment points (2) in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

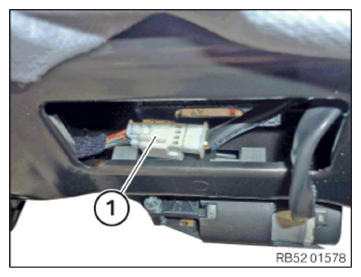

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
