Installing the backrest covering with the cushion for the front seat

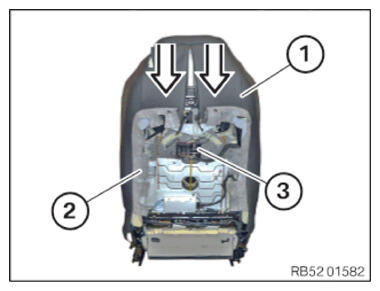

- Feed the backrest covering (1) in completely with the side airbag.
- Make sure that the stud bolts of the side airbag (2) are positioned correctly.
- Connect connectors (3) and lock.

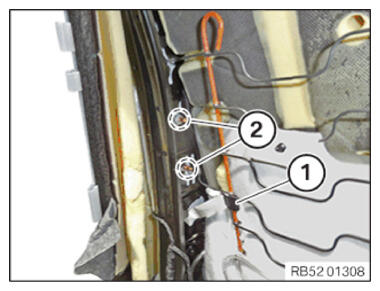

- Attach holder (1).
- Replace nuts (2).
Parts: Nuts
- Tighten nuts (2).
TIGHTENING TORQUE SPECIFICATIONS
| Airbag on the backrest frame | ||
|---|---|---|
| Nut Replace nut. |
tightening torque | 6.5 Nm |

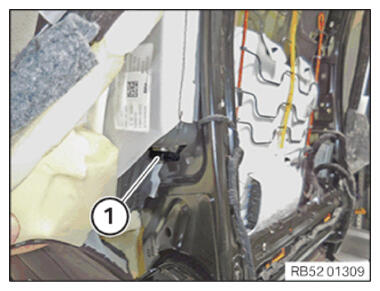

- Connect connectors (1) and lock.

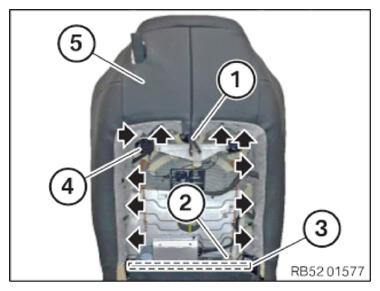

- Attach the backrest covering (5) on the detents (4) (arrows).
- Attach the edge stripping (3).
- Connect and lock the connector (2) and clip in the cable bracket.
- Close the zipper (1).

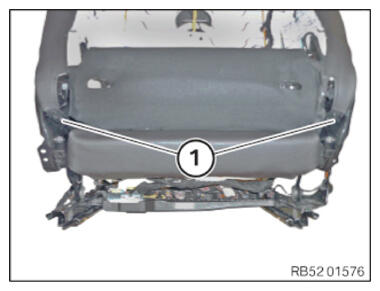

- Attach the detents (1).
Installing the trim for the seat release

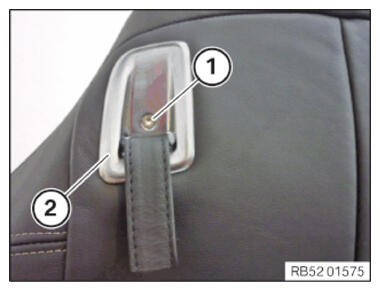

- Feed in the trim for the seat release (2).
- Tighten down screw (1).
