Installing rear reflector

Check

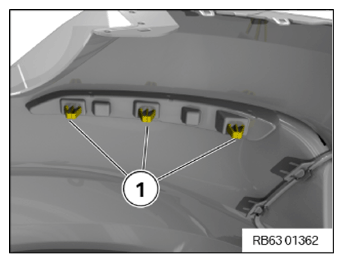

• Check the detents (1) on the rear reflector (2) for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Detents (1) are damaged.

  Measure

  • Replace rear reflector (2).
• Install the rear reflector and clip in with the detents (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR PANEL .
• Refer to PARTIALLY INSTALLING THE REAR LEFT AND RIGHT WHEEL ARCH COVERS .
• Refer to INSTALLING BOTH EXHAUST COVERS .
• Refer to INSTALLING BOTH SIDE REAR TRIM STRIPS .
• Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
• Refer to INSTALLING COVER FOR WATER CHANNEL ON LEFT AND RIGHT .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT (PARTIALLY REMOVED) .
• Refer to INSTALLING BOTH LEDS IN THE CARGO AREA .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
