Installing both LEDs in the cargo area
NOTE:
Description is for left component only. Procedure on the right side is identical.

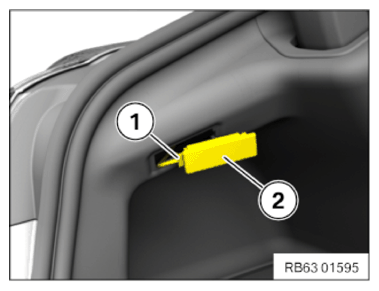

Installing the LED in the luggage compartment
- Connect connectors (1) and lock.
- Clip in the LED (2) into the luggage compartment wheel arch trim panel.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
