Installing the fog lights on the left (bumper cover installed)

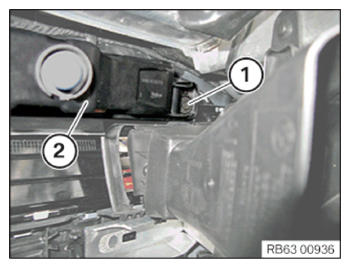

• Position the front fog lamp (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Fog light to holder
  Hexagon screw for plastic	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

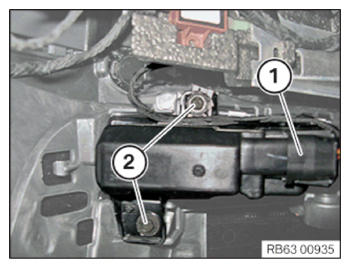

• Tighten down screws (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Fog light to holder
  Hexagon screw for plastic	Tightening torque	2.5 Nm

• Connect connectors (1) and lock.
• Clip in cable clip.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE BRAKE VENTILATION DUCT .
• Refer to INSTALLING THE FRONT BOTTOM WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT BUMPER (FOR EQUIPMENT SPECIFICATION WITH ADDITIONAL RADIATOR) .
• Refer to ADJUSTING FOG LIGHTS .
