Installing the front bottom wheel arch cover

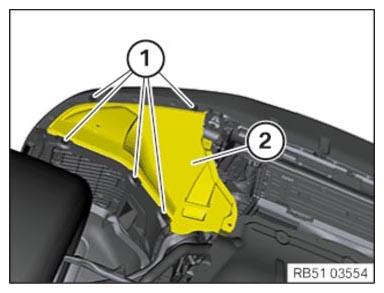

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Guide the wheel arch cover (2) in.
• Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Wheel arch cover (screws)
Thermoplastic hexagon screw	tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
