Install the brake ventilation duct

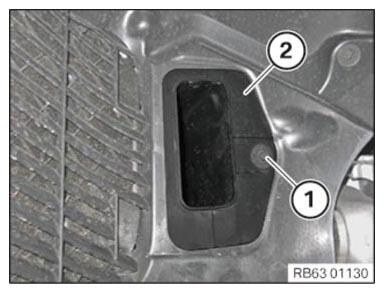

- Guide the brake ventilation duct (2) into the wheel arch cover.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) |
| Thermoplastic hexagon screw |
tightening torque |
3 Nm |
