Installing the left engine support bracket

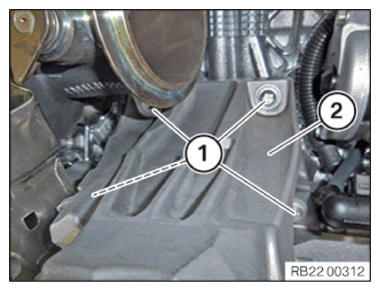

- Install the left engine support bracket (2) .
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS

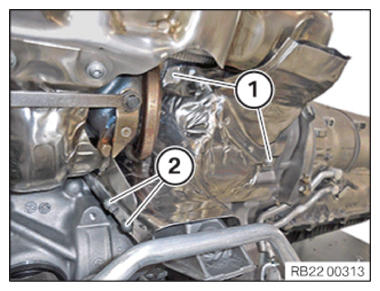

Engine support bracket on the engine M10 Tightening torque 38 Nm - Install the heat shield.
- Tighten down screws (1) .
- Tighten down screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Heat shield to starter motor/crankcase M6 Tightening torque 10 Nm
Follow-up work
- Refer to INSTALLING THE CATALYTIC CONVERTER FOR CYLINDERS 7 TO 12 .
- Refer to CONNECTING THE HYDRAULIC LINES .
- Refer to INSTALLING FRONT AXLE COMPLETELY .
- Refer to SECURING THE HOLDER ON THE FRONT AXLE SUPPORT .
- Refer to RAISING FRONT AXLE SUPPORT .
- Refer to TIGHTENING THE BOLTS ON THE FRONT AXLE SUPPORT .
- Refer to ATTACHING SWIVEL BEARING IN INSTALLATION POSITION .
- Refer to REMOVING THE MOBILE LIFTING TABLE .
- Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
- Refer to ATTACHING COOLANT HOSES TO FRONT SUBFRAME .
- Refer to ATTACHING THE THERMOSTAT OR TRANSMISSION OIL COOLER LINE ON THE FRONT SUBFRAME .
- Refer to REMOVING THE SECURING TOOL OF THE ENGINE IN INSTALLATION POSITION .
- Refer to ATTACHING THE UNIVERSAL JOINT TO STEERING GEAR .
- Refer to INSTALLING THE UNIVERSAL JOINT AT THE BOTTOM OF THE STEERING SHAFT .
- Refer to INSTALLING THE OUTPUT SHAFTS .
- Refer to IF INSTALLED: CONNECTING THE CONNECTOR OF THE ACTIVE STABILIZER .
- Refer to IF INSTALLED: SECURING THE LINE FOR THE VERTICAL ACCELERATION SENSOR ON THE RIGHT AND LEFT .
- Refer to ATTACHING THE CABLE OF THE WHEEL RPM SENSOR ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE BRAKE CALIPER AT THE FRONT LEFT AND RIGHT .
- Refer to SECURING THE RIGHT AND LEFT OUTPUT SHAFTS ON THE WHEEL BEARING .
- Refer to IF INSTALLED: INSTALLING THE SILENCER OF THE STATIONARY HEATING .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
- Refer to INSTALLING THE REINFORCEMENT STRUT ON THE RIGHT ENGINE MOUNT .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to INSTALLING THE LEFT LAMBDA OXYGEN SENSOR .
- Refer to INSTALLING CHARGE AIR PIPE ON LEFT .
- Refer to INSTALLING THE LEFT THROTTLE BODY .
- Refer to INSTALLING TOPPING CLEAN AIR PIPE ON LEFT .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to SECURING THE AIR SUSPENSIONS STRUTS IN THE FRONT .
- Refer to INSTALLING THE LATERAL HOOD SEALS .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALLING BOTH TRIM PIECES FOR THE EXHAUST TAILPIPE .
- Refer to INSTALLING THE TRIM ON THE REAR BUMPER PANEL .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to RESETTING THE TIRE PRESSURE MONITOR .
