Install left and right brake ventilation duct
NOTE:
Perform the steps on the right and left side.

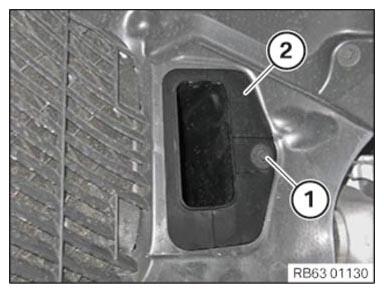

Install the brake ventilation duct
- Guide the brake ventilation duct (2)
into the wheel arch cover.
- Tighten down screw (1)
.
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) |
| Thermoplastic hexagon screw |
tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
