Remove the integrated power supply module (PDM)
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING RIGHT FRONT-END STRUT .
- Refer to REMOVING THE FRONT-END STRUT (US VERSION) .
- Refer to REMOVING COVER FOR THE RIGHT DME CONTROL UNIT .
NOTE:
To provide a better overview: Shown without DME control unit.

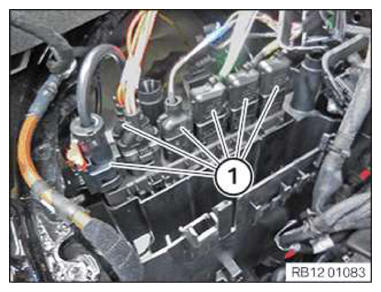

- Unlock and detach all connectors (1)
from the integrated power supply module (PDM).

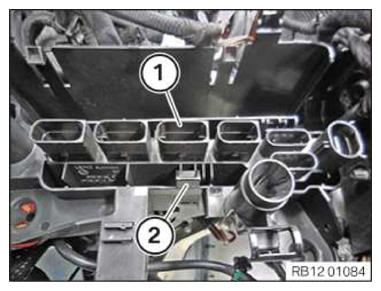

- Unlock the locking mechanism (2) and remove the integrated supply module (PDM) (1) upward.
