Remove right front-end strut
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the front-end strut
NOTE:
RISK OF DAMAGE
Use of an incorrect tool (impact screwdriver) to release and tighten the screws.
Damaged thread.
Use of an incorrect tool (impact screwdriver) to release and tighten the screws.
Damaged thread.
- Only use a standard tool (e.g. reversible ratchet) to release/tighten the screws.

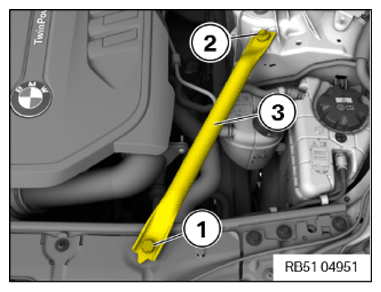

- Loosen screws (1) and (2) .
- Remove the front-end strut (3) .
