Release screw connection for left engine mounting bracket
CAUTION:
Components connected to the engine joint or cross member.
Injury hazard!
Injury hazard!
- Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
- Attach the component to correctly mounted engine joints or cross members only.
- Only lift the component, do not shift it forwards, backwards or in transverse direction.
Preliminary work
- Refer to REMOVING THE COVER FOR THE CENTER ENGINE COMPARTMENT .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING BOTH FRONT-END STRUTS .
- Refer to REMOVING FAN COWL .
- Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to DRAINING THE COOLANT FOR THE CHARGE AIR COOLER .
- Refer to REMOVING RIGHT CHARGE AIR COOLER .
- Refer to REMOVING THE RIGHT THROTTLE BODY .
- Refer to LOOSENING THE OUTPUT SHAFT FROM THE WHEEL BEARING .
- Refer to RELEASING CABLE FROM VERTICAL ACCELERATION SENSOR ON LEFT AND RIGHT .
- Refer to RELEASING THE FRONT LEFT AND RIGHT BRAKE CALIPERS .
- Refer to LOOSENING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT FROM THE ANTI-ROLL BAR .
- Refer to DETACHING THE SPRING STRUT AT THE BOTTOM OF THE WISHBONE .
- Refer to DETACHING THE UPPER WISHBONE FROM THE SWIVEL BEARING .
- Refer to REMOVING THE UNIVERSAL JOINT ON THE STEERING GEAR .
- Refer to SETTING UP THE SPECIAL TOOL .
- Refer to ATTACHING SPECIAL TOOL 11 0 000 AT FRONT .
- Refer to ATTACHING THE SPECIAL TOOL 11 0 000 IN THE BACK .
- Refer to REMOVING FRONT AXLE CARRIER .
- Refer to COMPLETELY REMOVING FRONT AXLE .
- Refer to LOWERING THE ENGINE WITH THE SPECIAL TOOL .
- Refer to IF INSTALLED: REMOVING THE SILENCER OF THE STATIONARY HEATING .
- Refer to RELEASING AIR CONDITIONING COMPRESSOR .

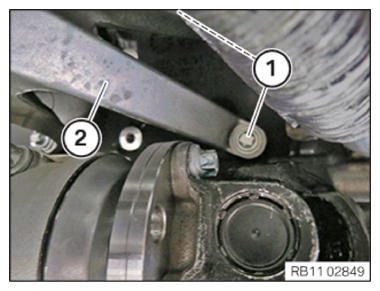

- Unscrew all bolts (1) .
- Remove the engine mounting bracket (2) .
