Releasing the front left and right brake calipers
NOTE:
Description is for left component only. Procedure on the right side is identical.

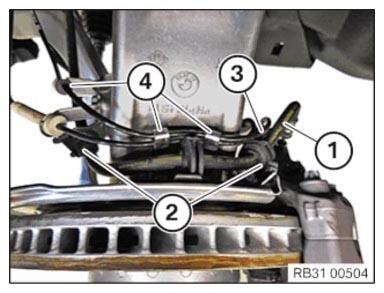

- Detach the brake hose (1) from the holders (2) .
- Detach the cable (3)
for the brake pad wear sensor from the holders (4)
.

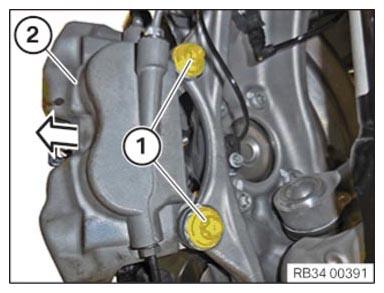

- Loosen screws (1) .
- Detach the brake caliper (2)
in the direction of the arrow.

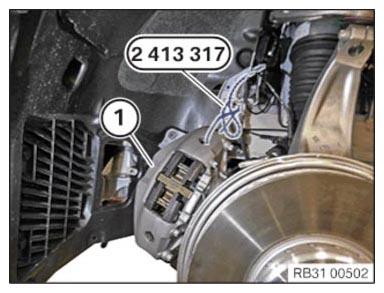

- Tie up brake caliper (1) with special tool 2 413 317 in wheel arch.
