Installing the intake plenum

Replace all gaskets at the intake manifolds

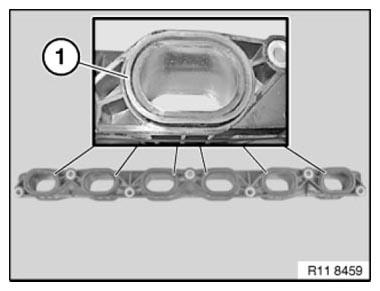

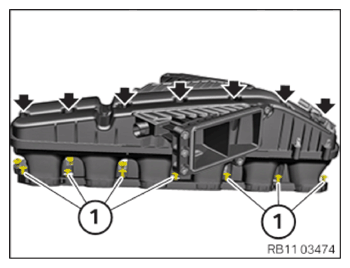

• Replace all the profile seals (1) at the intake manifolds (cylinder bank 1 and 2).

  Parts:  Profile seals

Courtesy of BMW OF NORTH AMERICA, INC.

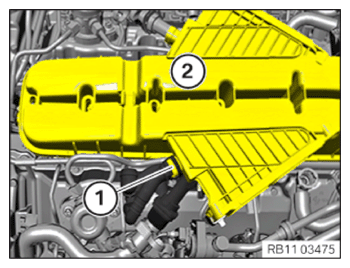

• Insert and install intake plenum (2).
• Connect and position the engine ventilation line (2) on the intake air plenum and lock.

  The lock (1) must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten all screws (1) through the openings (arrows)  with the special tool 0 496 646 (11 4 410)  .
  TIGHTENING TORQUE SPECIFICATIONS



  Intake system to vacuum lines M6 T30
  M6x25	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

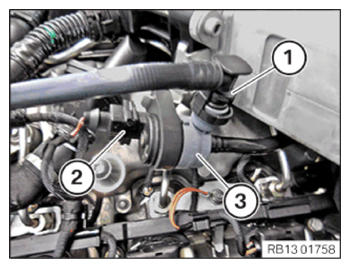

• Mount tank vent valve (3) to the holder.
• Connect the connector (1), it should lock audibly.
• Connect and audibly lock the tank vent line (2) on the tank vent valve (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

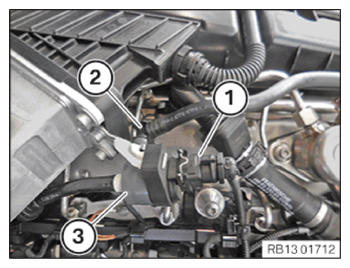

• Mount tank vent valve (3) to the holder.
• Pin up connector (2) and lock audibly.
• Connect and audibly lock the tank vent line (1) to the tank vent valve.

  Courtesy of BMW OF NORTH AMERICA, INC.

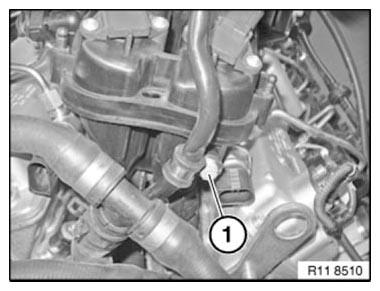

• Position the vacuum line at the intake air plenum.
• Fasten the screw (1) on the vacuum line holder.
  TIGHTENING TORQUE SPECIFICATIONS



  Standard screw connection M6
  M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

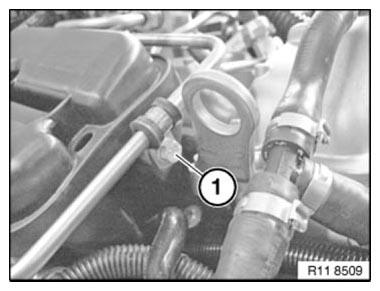

• Position the fuel line at the intake plenum.
• Fasten the screw (1) on the fuel line holder.
  TIGHTENING TORQUE SPECIFICATIONS



  Standard screw connection M6
  M6	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

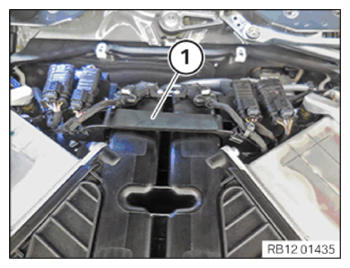

• Attach and secure the cable clips (1) on the intake air plenum.

  Courtesy of BMW OF NORTH AMERICA, INC.

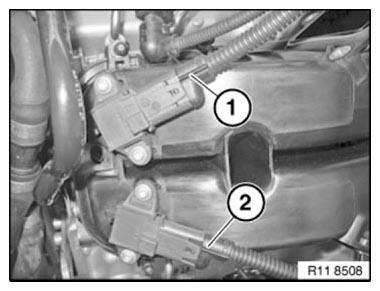

• Connect the connector (1) to the boost pressure sensor of cylinder bank 2.
• Connect the connector (2) to the boost pressure sensor of cylinder bank 1.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TANK VENT LINE .
• Refer to INSTALLING THE ENGINE VENTILATION LINE ON THE INTAKE SYSTEM .
• Refer to MOUNTING THE LEFT-HAND CHARGE AIR COOLER .
• Refer to INSTALLING THE LEFT THROTTLE BODY .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to MOUNTING THE RIGHT-HAND CHARGE AIR COOLER .
• Refer to INSTALLING THE RIGHT THROTTLE BODY .
• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING ACOUSTIC COVER .
