Mounting the left-hand charge air cooler

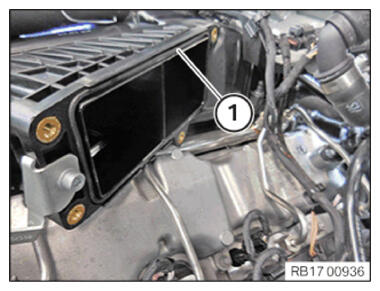

• Replace the seal (1)  .

  Parts:  Gasket

  Courtesy of BMW OF NORTH AMERICA, INC.

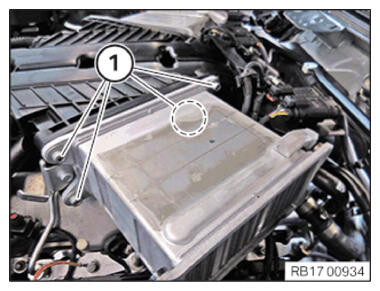

• Mount the left charge air cooler on the intake plenum.
• Tighten down screws (1)  .

TIGHTENING TORQUE SPECIFICATIONS

Charge air cooler to intake plenum
M6	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
