Install the tank vent line
Install the tank vent line

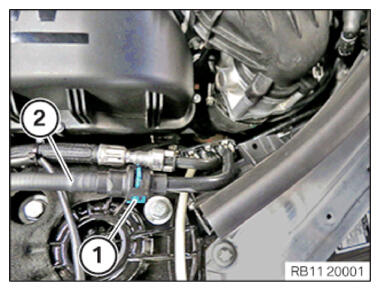

Connect tank vent line
(2)
and lock.
The lock
(1)
must audibly engage.
Courtesy of BMW OF NORTH AMERICA, INC.

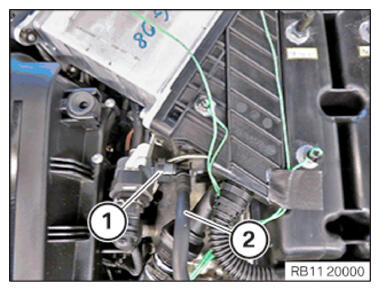

Connect tank ventilation line
(2)
to tank vent valve and lock.
The lock
(1)
must audibly engage.
Courtesy of BMW OF NORTH AMERICA, INC.

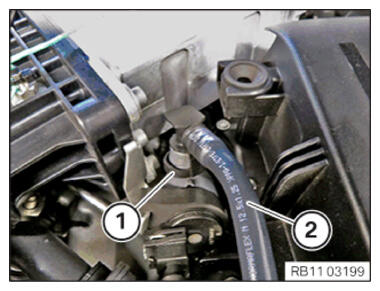

Connect tank ventilation line
(2)
to tank vent valve and lock.
The lock
(1)
must audibly engage.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
