Remove exhaust system
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Component with heavyweight.
Injury hazard!
Injury hazard!
- Note component's center of gravity.
- Support component using a jack.
- Secure component against falling off the jack.
NOTE:
TECHNICAL INFORMATION
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.
Preliminary work
- Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
- Refer to REMOVING THE REAR AXLE COVER .
- Refer to REMOVING THE REAR DIFFUSER .
- Refer to IF INSTALLED: REMOVING THE TORSION STRUT ON THE RIGHT AND LEFT WHERE REQUIRED .
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Component with heavyweight.
Injury hazard!
Injury hazard!
- Note component's center of gravity.
- Support component using a jack.
- Secure component against falling off the jack.

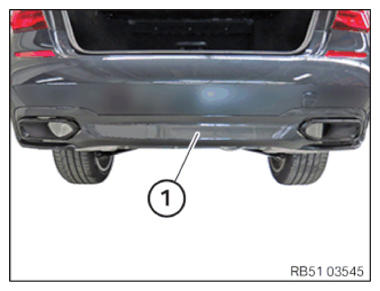

- Unclip the trim (1)
from the bumper cover (2)
using a suitable plastic wedge and remove it towards the rear.

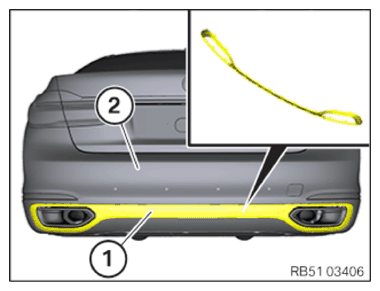

- With optional equipment SA715 M Aerodynamic package:
Unclip the trim (1) from the bumper cover using a suitable plastic wedge and remove it towards the rear.

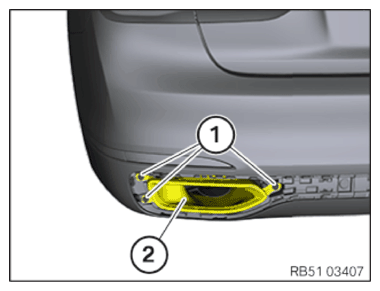

NOTE: Description is for left component only. Procedure on the right side is identical. - Loosen screws (1) .
- Remove the trim (2)
for the exhaust tailpipe.

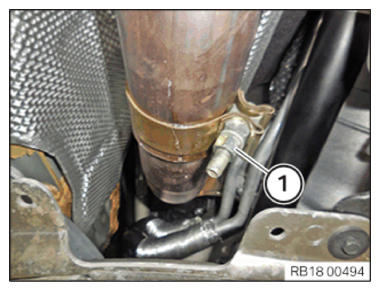

- Loosen the clamp (1)
on the left.

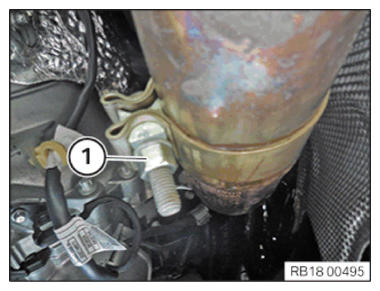

- Loosen the clamp (1)
on the right.

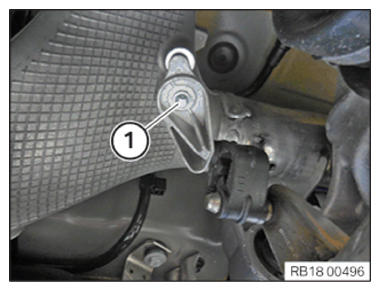

- Loosen the screw (1)
the left of the rear axle support.

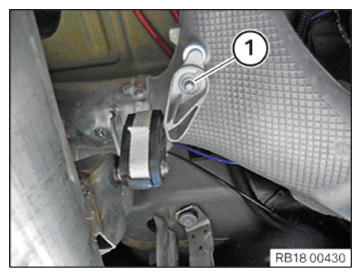

- Loosen the screw (1)
the right of the rear axle support.

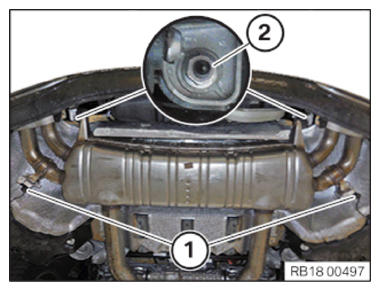

- Unlock and detach the connector (1) on the left and right.
- Loosen nuts (2) .
- Guide out and remove the exhaust system with the help of three persons.
