Remove the connecting support from the tunnel
Remove the connecting support from the tunnel

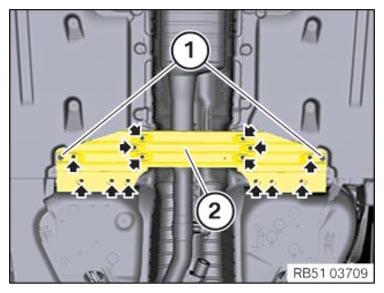

Version A:
Loosen screws
(1)
.
Remove screws (arrows).
Remove the connecting support
(2)
from the tunnel.
Courtesy of BMW OF NORTH AMERICA, INC.

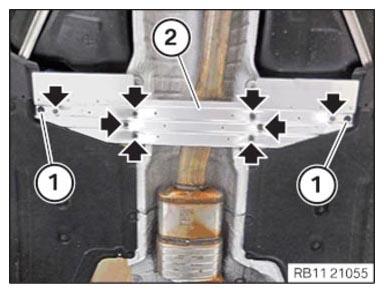

Version B:
Loosen screws
(1)
.
Remove screws (arrows).
Remove the connecting support
(2)
from the tunnel.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
