Installing the rubber mounts for the front rear differential mounting

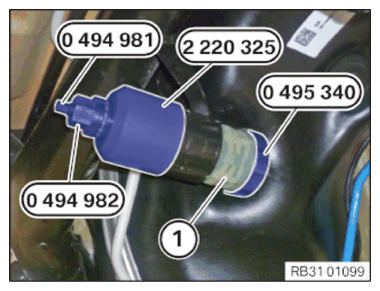

- Pull the rubber mounting into the rear axle carrier using special tools 0 495 340 (33 4 351), 2 220 325 (33 0 181), 0 494 981 (33 4 465) and 0 494 982 (33 4 466) .
- Ensure that the special tool 2 220 325 (33 0 181) is correctly positioned on the rear axle support.
- Remove special tools.
Follow-up work
- Refer to LIFTING THE REAR DIFFERENTIAL .
- Refer to FASTENING THE WIRING HARNESS TO THE M SPORT DIFFERENTIAL .
- Refer to ATTACHING THE CENTRAL MOUNT OF THE PROP SHAFT .
- Refer to INSTALLING THE REAR HEAT SHIELD .
- Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
