Installing the roller sunblind for the panoramic glass sunroof

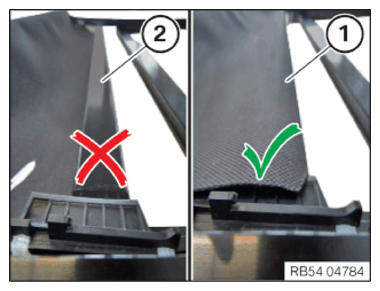

Check retaining strap (1) of the roller sunblind for damage. If necessary, replace the roller sunblind.
The retaining strap may not have any kinks, cracks or other defects.

Courtesy of BMW OF NORTH AMERICA, INC.

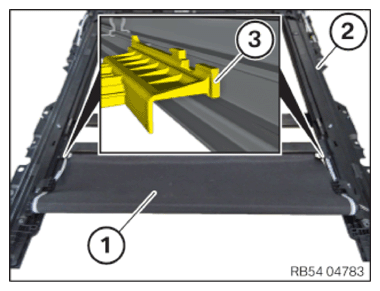

Position the roller sunblind (1) on the slide/tilt sunroof frame (2).
Ensure that sliders (3) are positioned correctly in the rail of the slide/tilt sunroof frame.

Courtesy of BMW OF NORTH AMERICA, INC.

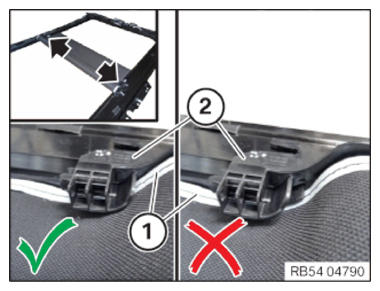

Ensure that the lining of roller sunblind (1) runs above the cross-member of driver (2) as shown.
If necessary, turn cross-member (1) by 360°.

Courtesy of BMW OF NORTH AMERICA, INC.

Attach the retaining strap (1) on both sides at the driver (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Shift roller sunblind (1) to the front until drivers (2) can be hooked.

Courtesy of BMW OF NORTH AMERICA, INC.

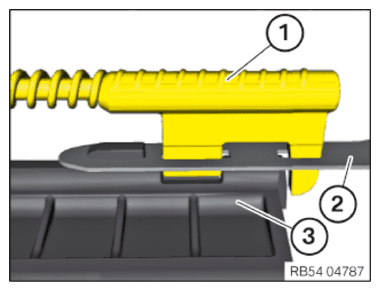

Ensure that driver (1) is hooked through retaining strap (2) on slider (3).

Courtesy of BMW OF NORTH AMERICA, INC.

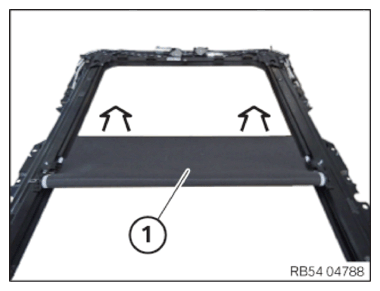

Manually close the roller sunblind (1) by a few centimeters.

Courtesy of BMW OF NORTH AMERICA, INC.

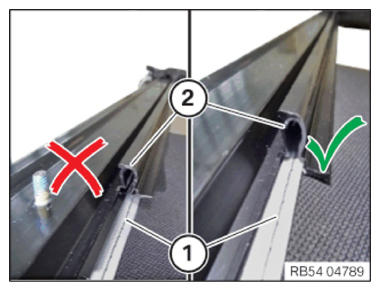

Ensure that retaining strap (1) runs correctly in the guide on slide/tilt sunroof frame (2).

Courtesy of BMW OF NORTH AMERICA, INC.

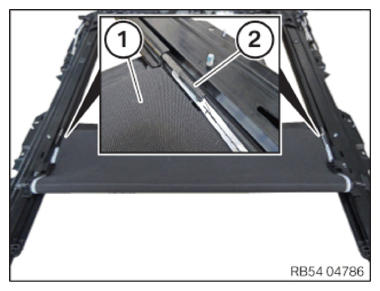

Ensure that retaining strap (1) runs correctly in guide (2) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

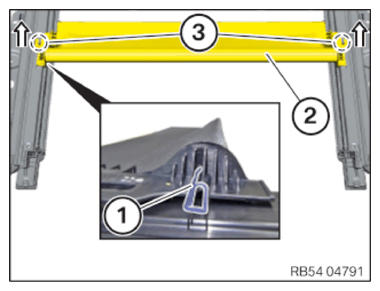

Remove the stop (1) as necessary.
Shift the roller sunblind (2) forward and position it at the threaded bolts (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
