Installing the left and right C-pillar trim panel

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing C-pillar trim panel

WARNING: Pyrotechnic components.
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

NOTE: RISK OF DAMAGE
Damage to the head airbag.
Improper use of a tool when removing the trim panel may damage the head airbag.

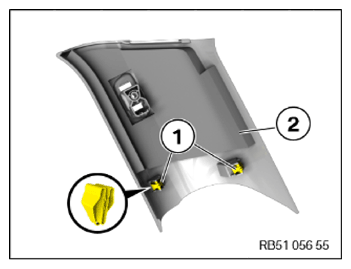

Check the clips (1) for damage and replace where required.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the C-pillar trim panel (2) and clip in at the clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATION

C-pillar trim panel to body
Screw	tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing C-pillar trim panel

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

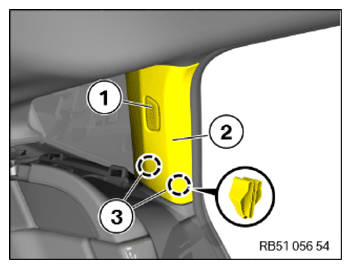

Check the clamps (1) on the C-pillar trim panel (2) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the C-pillar trim panel (2) insert it below the sealing lip of the door weather strip and clip it in with the clamps (3).

Tighten down screw.

TIGHTENING TORQUE SPECIFICATION

C-pillar trim panel to body
Sheet metal screw 8 x 38	Tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
