Installing the rear bumper cover

Check

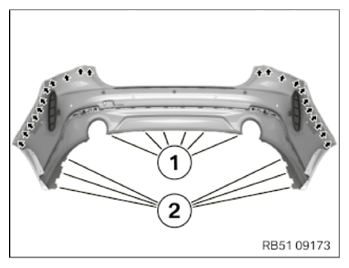

• Check the detents (1) and (2) of the trim on the bumper cover for damage.
• Check the detents (arrows) on the bumper cover for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detents (1) or (2) are damaged.

Measure

• Replace the trim on the bumper cover.

Result

» The detents (arrows) are damaged.

Measure

• Replace the bumper cover.
• Position the bumper cover.
• Connect and lock the connector in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

• Clip the bumper cover into the detents (2).
• Clip the bumper cover into the detents (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip the bumper cover into the detents (arrows).
• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATION



  Rear bumper cover to guide
  Hexagon screw	tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Rear bumper cover to guide
  Hexagon screw	tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Rear bumper cover to body
  Oval-head screw	tightening torque	2.5 Nm

Follow-up work

• Refer to PARTIALLY ATTACHING THE REAR LEFT AND RIGHT WHEEL ARCH COVER .
• Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
• Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE BOTTOM LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL PARTIALLY .
• Refer to INSTALLING THE LED IN THE LEFT AND RIGHT CARGO AREA .
• Refer to INSTALLING COVER OF THE LUGGAGE COMPARTMENT SIDE SHELF LEFT AND RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to INSTALLING THE FRONT STORAGE SHELF .
