Replacing the backrest frame

Preliminary work

• Refer to REMOVING REAR SEAT BENCH .
• Refer to REMOVING LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to REMOVING REAR SEAT BACKREST .
• Refer to REMOVING THE FILLER PIECE .
• Refer to REMOVING THE BACKREST COVER WITH THE CUSHION .

• Loosen screw (1).
• Remove the outer bearing (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

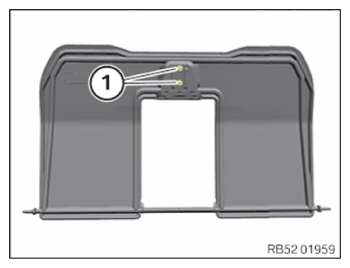

• Release nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

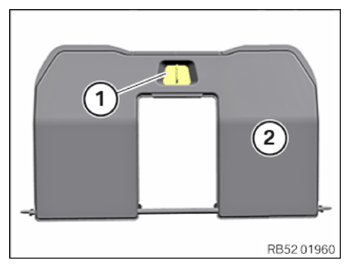

• Remove the retainer for the backrest release from the backrest frame (2).
• Replace the backrest frame (2).

  Parts:  Backrest frame

  Courtesy of BMW OF NORTH AMERICA, INC.

• Correctly position the retainer for the backrest release on the backrest frame.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.
• Position the outer bearing (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION .
• Refer to INSTALLING THE FILLER PIECE .
• Refer to REMOVING REAR SEAT BACKREST .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
