Seats -- Repair (G22, G23 & G26)
>>
52 24 Rear Seat, Normal
>>
52 24 030 Completely removing and installing the armrest for the rear seat backrest (4' Series convertible models)
>>
Removing the filler piece
Removing the filler piece

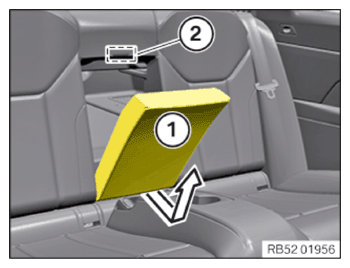

Unlock the filler piece (1) in the marked area (2) and position it as shown.
Carefully unclip the filler piece (1) in the arrow direction and remove it.
Courtesy of BMW OF NORTH AMERICA, INC.
