Install the wiring harness section of the transmission wiring harness

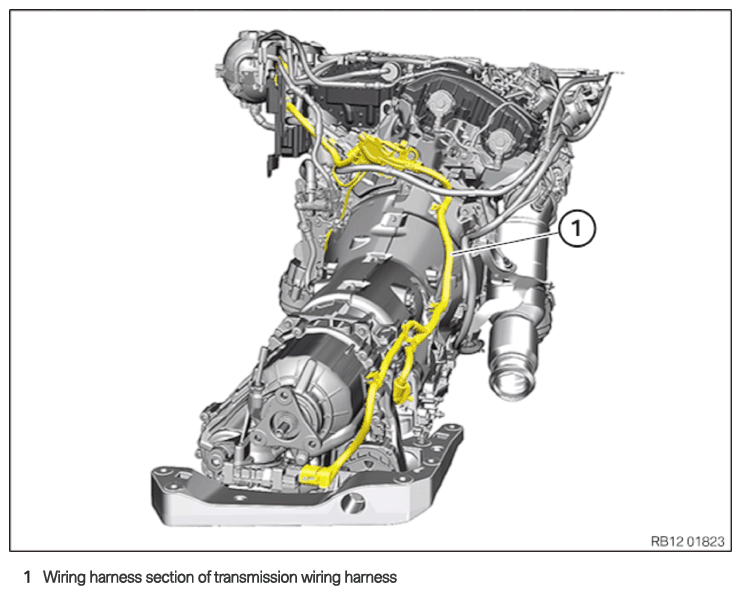

Wiring harness section of transmission wiring harness

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

Insert and install the wiring harness (1) for the transmission module.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the wiring harness section (3) of the transmission wiring harness.
Connect connectors (1) and lock.
The connector (1) must engage audibly.
Tighten down screw (2) .

TIGHTENING TORQUE SPECIFICATION

Grounding cable/wiring harness section to transmission
BM6	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

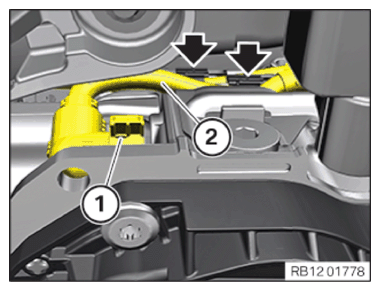

Feed in and install the wiring harness section (2) of the transmission wiring harness.
Secure the clamps (arrows).
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.
Thread in the wiring harness section (2) of the supply module and install.
Secure clamp (arrow).
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

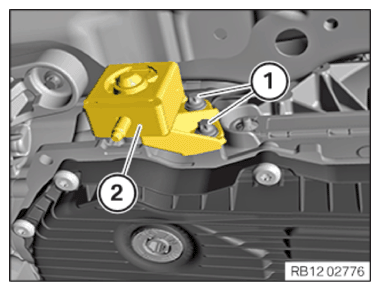

Insert and install the holder (2) .
Replace screws (1) .
Parts: Screws
Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATION

Holder on the transmission
Torx screw BM8 Replace screws.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Fastening the transmission

Move the transmission (3) to the installation position.
Replace screws (2) .
Parts: Screws
Tighten down screws (2) .

TIGHTENING TORQUE SPECIFICATION

Transmission cross member to body
M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the cable with the clamp (1) .
Loosening the luggage strap (1) .
Remove special tools 2 219 012 and 0 495 498 (23 4 050).

Courtesy of BMW OF NORTH AMERICA, INC.

Secure clamps (2) .
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

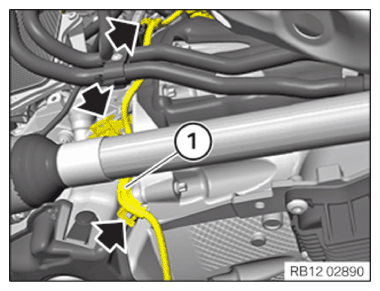

Feed in and install the wiring harness section (1) of the transmission wiring harness.
Secure the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the wiring harness section (2) of the transmission wiring harness.
Secure clamp (arrow).
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

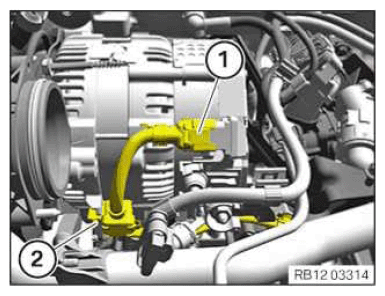

Secure the clamp (2) .
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

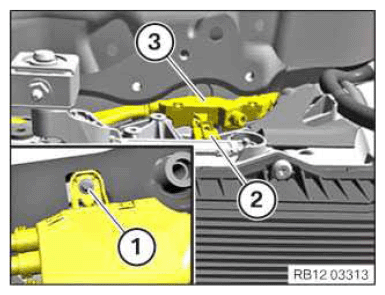

Feed in and install the wiring harness section (3) of the transmission wiring harness.
Make sure that the lock (2) engages correctly.
Tighten down screws (1) .

TIGHTENING TORQUE SPECIFICATION

Cable bracket on rear cylinder head/transmission
M6 x 20	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure the clamps (arrows).

Follow-up work

Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING THE INTAKE PLENUM .
Refer to INSTALLING THE TANK VENT VALVE .
Refer to INSTALLING TRANSMISSION MOUNTING BRACKET (ALL-WHEEL DRIVE VEHICLE) .
Refer to INSTALLING THE TRANSMISSION BEARING SUPPORT .
Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
Refer to INSTALLING THE HEAT SHIELD .
Refer to INSTALLING THE RETAINING PLATES .
Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
Refer to INSTALLING CONTROL UNIT BRACKET .
Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
Refer to INSTALLING THE DME CONTROL UNIT .
Refer to INSTALLING ACOUSTIC COVER AT REAR .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING CENTER FIREWALL LOWERING PART .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to RECONNECTING ALL BATTERY GROUND LEADS .
Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE REAR HOOD SEAL .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
