Moving the engine to the installation position
WARNING:
High-voltage system
.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!
- All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
- For additional information see:
- For additional information see:
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING WINDSHIELD PANEL COVER .
- Refer to REMOVING THE CENTER COWL UPPER PART .
- Refer to REMOVING THE LATERAL HOOD SEALS .
- Refer to REMOVING THE SIDE PANEL SEAL .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING ACOUSTIC COVER AT REAR .
- Refer to REMOVING THE DME CONTROL UNIT .
- Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to REMOVING CONTROL UNIT BRACKET .
- Refer to REMOVING ALL IGNITION COILS .
- Refer to REMOVING FUEL DELIVERY LINE .
- Refer to REMOVING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THRUST FIELD .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Prepared engine bridge
CAUTION:
Components connected to the engine joint or cross member.
Injury hazard!
Injury hazard!
- Check lifting eyes and engine mounting brackets for damage, e.g. cracks.
- Attach the component to correctly mounted engine joints or cross members only.
- Only lift the component, do not shift it forwards, backwards or in transverse direction.
- Insert and position the special tool 2 459 012 at the cylinder head.
- Tighten the screws (1)
of the special tool 2 459012
.TIGHTENING TORQUE SPECIFICATION
Special tool to cylinder head M8 Tightening torque 21.5 Nm - Carefully
position engine bridge (1)
with help from a support person.
- Make sure the left special tool 0 496 685 (00 6 070) is resting correctly on the front end.
- Make sure the left special tool 0 495 850 (00 0 452)
is resting correctly
on the carrier support.
- Make sure the right special tool 0 496 685 (00 6 070) is resting correctly on the front end.
- Make sure the right special tool 0 495 850 (00 0 452)
is resting correctly
on the carrier support.
- By shifting the engine bridge on the profile strips of the special tool 0 496 430 (00 6 050), align it above the engine mounting bracket and screw in place.
- Connect the special tool 0 490 579 (11 0 070) to the special tool 2 459 012 .
- Connect the special tool 0 490 579 (11 0 070)
above the engine mounting bracket (1)
at rear.
- Check that the right special tool 0 496 685 (00 6 070)
is resting correctly
on the front end.
- Check that the right special tool 0 495 850 (00 0 452)
is resting correctly
on the carrier support.
- Check that the left special tool 0 496 685 (00 6 070)
is resting correctly
on the front end.
- Check that the left special tool 0 495 850 (00 0 452)
is resting correctly
on the carrier support.

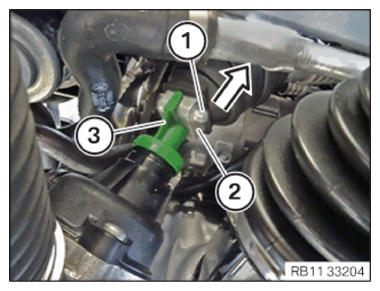

- Loosen screw (1) .
- Detach steering shaft (2)
from the steering gear (3)
in the arrow direction
.

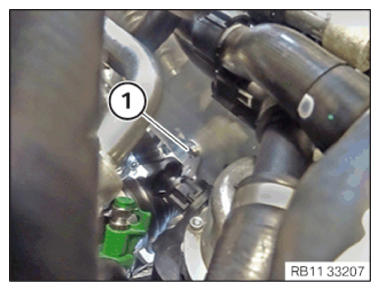

- Loosen screw (1)
.

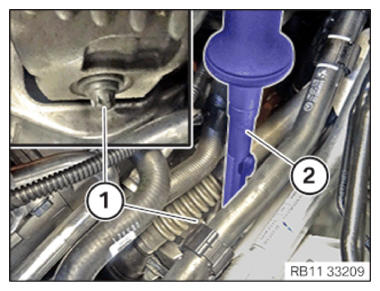

- Loosen expanding rivet (1) .
- Feed out coolant line (2)
and place to one side.

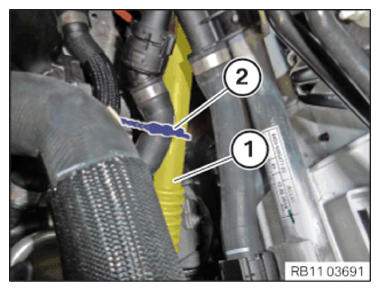

- Secure the steering shaft (1)
to the coolant line (2)
with the special tool 2 413 317
.

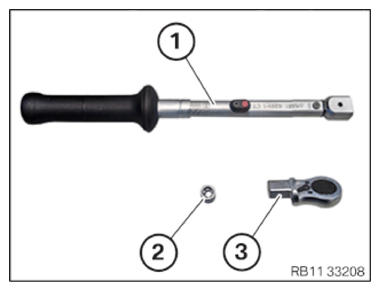

- Lay out all special tools and standard tools.

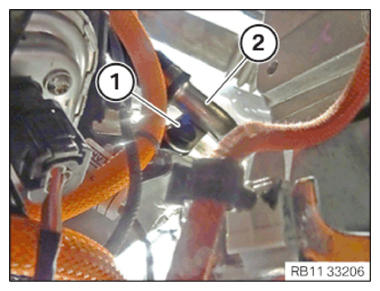

Number Description 1 Standard torque wrench 2 External Torx socket E14 3 Reversible ratchet - Release the screw (1)
of the left
engine mount with a standard tools (2)
.
- Release the screw (1)
of the right
engine mount from the top with a standard tool.
- Raise the engine by turning the special tool 2 361 506 (00 6 103)
(spindle) 10 mm
.
