Installing coolant pumps

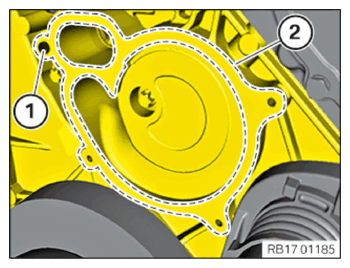

• Make sure the fitting sleeve (1) is in the crankcase.

• Clean sealing surface (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

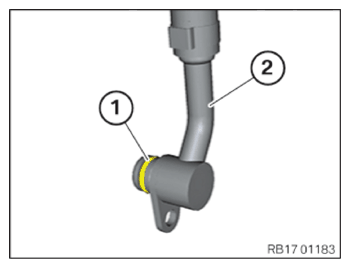

• Check the O-ring (1) of the coolant line (2) for damage, replace the line if applicable.

  Courtesy of BMW OF NORTH AMERICA, INC.

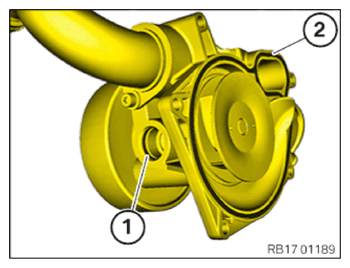

• Replace O-ring (1).

  Parts:  O-ring

• Replace the seal (2).

  Parts:  Seal

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the coolant pump (3) with the feed line.
• Position the coolant line (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Position coolant pump (1).
• Tighten the screws in the area indicated by the arrows.
  NOTE: Observe the screw length.

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the coolant line.
• Connect the coolant line (2).
• Retaining clip (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the heater return

• Position the heater return (2) in the coolant pump.
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect plug connection (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

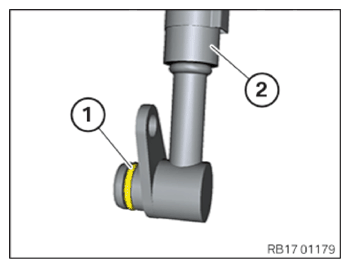

• Check the O-ring (1) of the coolant line (2) for damage, replace the line if applicable.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the coolant line (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE COOLANT LINE FROM THE COOLANT PUMP TO THE CHARGE AIR COOLER ON THE RIGHT
• Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
• Refer to CLOSING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to CLOSING THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE LOWERING LEFT FRONT WHEEL ARCH COVER .
• Refer to INSTALLING DRIVE BELT .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING THE FRONT-END STRUT .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT and INSTALL THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
• Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
