Closing the high-temperature coolant circuit

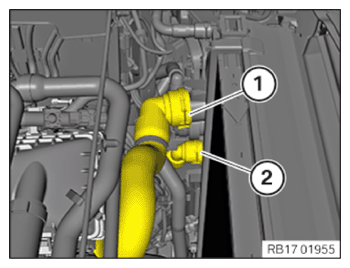

• Connect and lock the coolant hoses (1) and (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

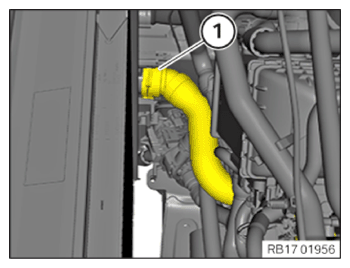

• Connect and lock the coolant hose (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE LOWER LEFT FRONT WHEEL ARCH COVER .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING THE FRONT-END STRUT .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT and INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
• Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to TOPPING UP COOLANT FOR HIGH-TEMPERATURE CIRCUIT .
• Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
