Vent the high-temperature coolant system
NOTE:
TECHNICAL INFORMATION
Following maintenance work, no coolant may be present in the injector shafts or spark plug shafts.
If necessary, blow out the injector shafts or spark plug shafts using compressed air.
Following maintenance work, no coolant may be present in the injector shafts or spark plug shafts.
If necessary, blow out the injector shafts or spark plug shafts using compressed air.
NOTE:
TECHNICAL INFORMATION
Filling without the vacuum filling equipment (watering can filling) is not permitted.
If this is not observed, there is a risk of component damage or engine damage.
The filling specification must be observed.
It is essential to visually check the vacuum filling equipment before use to check that it is functioning correctly and clean.
It is not permissible to operate the vehicle if the filling procedure has not been fully completed. Otherwise there may be functional limitations (degradation) or overheating.
A bleeding procedure is required after a part has been exchanged in the cooling system and/or after refilling the cooling system.
Filling without the vacuum filling equipment (watering can filling) is not permitted.
If this is not observed, there is a risk of component damage or engine damage.
The filling specification must be observed.
It is essential to visually check the vacuum filling equipment before use to check that it is functioning correctly and clean.
It is not permissible to operate the vehicle if the filling procedure has not been fully completed. Otherwise there may be functional limitations (degradation) or overheating.
A bleeding procedure is required after a part has been exchanged in the cooling system and/or after refilling the cooling system.
NOTE:
TECHNICAL INFORMATION
Before starting the automatic cooling system bleeding procedure, make sure that both coolant circuits are filled. The cooling system bleeding procedure is automatically started simultaneously for both coolant circuits. If the cooling system bleeding procedure is started while one of the coolant circuits is empty, there is a risk of damage to the electric coolant pump when running it dry.
Make sure that terminal 15 is not disconnected for the bleeding procedure. Switch on low-beam headlights and hazard warning lights. If the low-beam headlights and hazard warning lights are not switched on, the ignition (terminal 15) will switch off automatically after a certain period of time and interrupt the bleeding procedure.
Before starting the automatic cooling system bleeding procedure, make sure that both coolant circuits are filled. The cooling system bleeding procedure is automatically started simultaneously for both coolant circuits. If the cooling system bleeding procedure is started while one of the coolant circuits is empty, there is a risk of damage to the electric coolant pump when running it dry.
Make sure that terminal 15 is not disconnected for the bleeding procedure. Switch on low-beam headlights and hazard warning lights. If the low-beam headlights and hazard warning lights are not switched on, the ignition (terminal 15) will switch off automatically after a certain period of time and interrupt the bleeding procedure.
NOTE:
TECHNICAL INFORMATION
Immobilization period-long fill of coolant! Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
Immobilization period-long fill of coolant! Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.
Closing the high-temperature coolant circuit
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Connect and lock the coolant hoses (1) and (2) .
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
- Connect and lock the coolant hose (1) .
- Remove the vacuum filling equipment from the coolant expansion tank of the high-temperature coolant system.
- Open the bleeder screw on the coolant expansion tank for the high-temperature coolant circuit and close it again after approx. 10 s.
The bleeder screw may be closed before the 10 s have elapsed when coolant emerges.
- Adjust the fill level in the coolant expansion tank of the high-temperature cooling system to the maximum mark.
- Close the sealing cap on the coolant expansion tank of the high-temperature cooling circuit.
- Close the engine compartment lid.
- Turn on the low-beam headlights and the hazard warning lights.
- Close driver's seat belt.
- Switch on ignition by quickly operating the START-STOPPING button three times.
- Set the heating to the maximum and the blower to the lowest setting.
- Floor the accelerator pedal and hold for 15 s.
The automatic cooling system bleeding procedure will be initiated.
- Start engine.
The Idle speed is automatically increased to 1200 RPM.
- Actuate the accelerator pedal until approx. 3500 rpm, maintain engine speed for 10 s.
- Hold idle speed for 30 s.
- Actuate the accelerator pedal until approx. 3500 rpm, maintain engine speed for 10 s.
- Hold idle speed for 30 s.
- Actuate the accelerator pedal until approx. 3500 rpm, maintain engine speed for 10 s.
- Hold idle speed for 30 s.
- Actuate the accelerator pedal until approx. 3500 rpm, maintain engine speed for 10 s.
- Hold idle speed for 30 s.
- Actuate the accelerator pedal until approx. 3500 rpm, maintain engine speed for 10 s.
The cooling system bleeding procedure has finished approximately 11 min after the engine starts.
The engine speed drops to the idle speed again.
- Switch off engine.
- Allow the engine to cool down.
- Adjust the fill level in the coolant expansion tank of the high-temperature coolant circuit to the maximum mark.

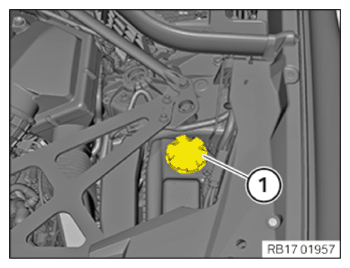

- Close the sealing cap (1) until the arrows are flush.
