Removing bottom deformation element

Preliminary work

• Refer to REMOVING FRONT ORNAMENTAL GRILLE .
• Refer to PARTIALLY REMOVING BOTH FRONT WHEEL ARCH TRIMS .
• Refer to PARTIALLY REMOVING THE FRONT SECTIONS OF BOTH WHEEL ARCH COVERS AT THE FRONT .
• Refer to REMOVING FRONT BUMPER COVER .
• Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to REMOVING THE BRAKE VENTILATION DUCT .

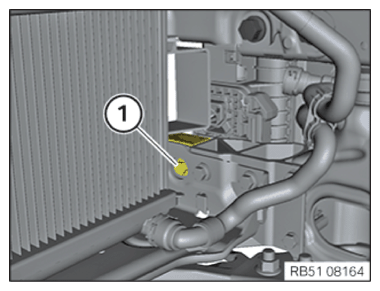

• Loosen screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

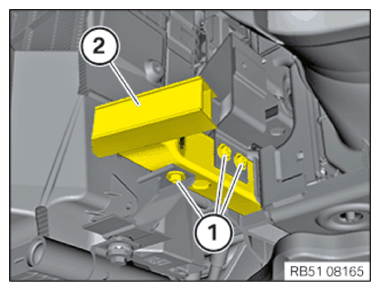

• Loosen screws (1).
• Feed out bottom deformation element (2) towards front.

  Courtesy of BMW OF NORTH AMERICA, INC.
